Pattern simulation

Functions used to simulate localization patterns.

We implemented 9 patterns (8 localized patterns + 1 default random pattern) in 3D. The percentage of localized spots defines the pattern strength:

  • Random

pic1

  • Foci

pic2

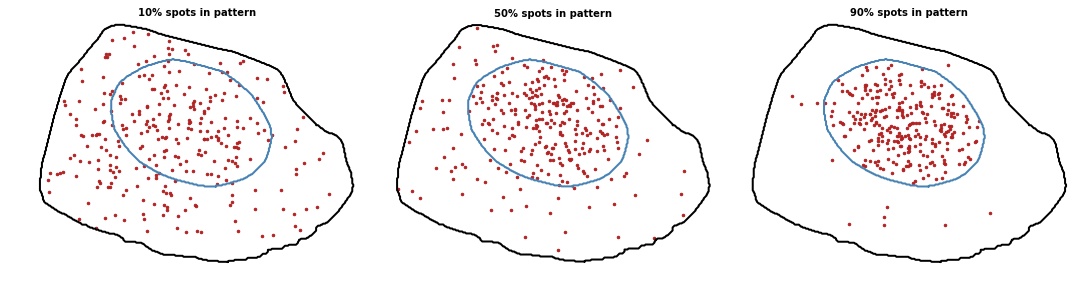

  • Intranuclear

pic3

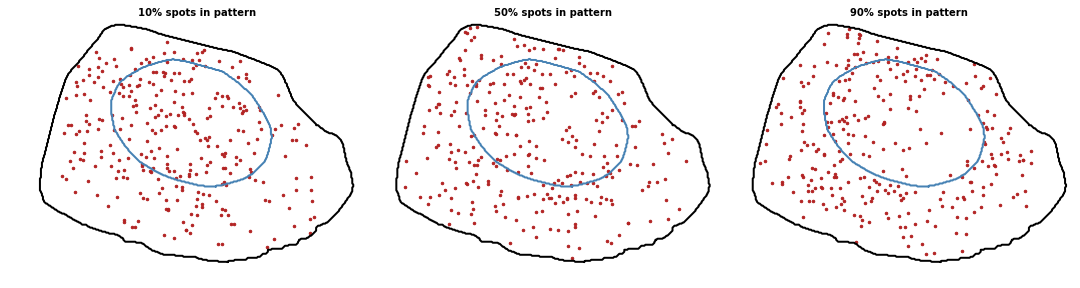

  • Extranuclear

pic4

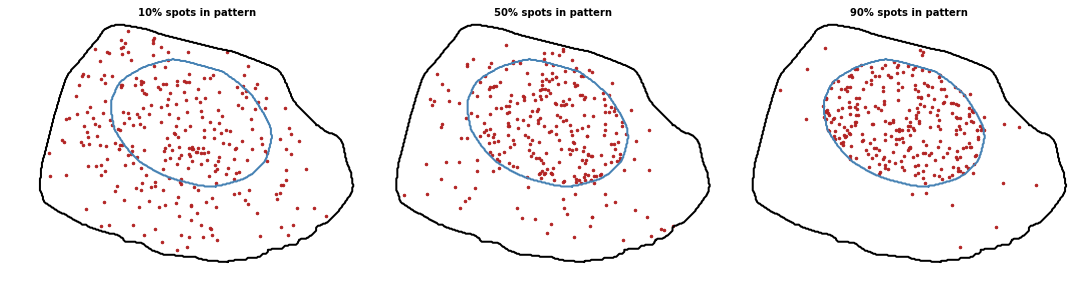

  • Nuclear edge

pic5

  • Perinuclear

pic6

  • Cell edge

pic7

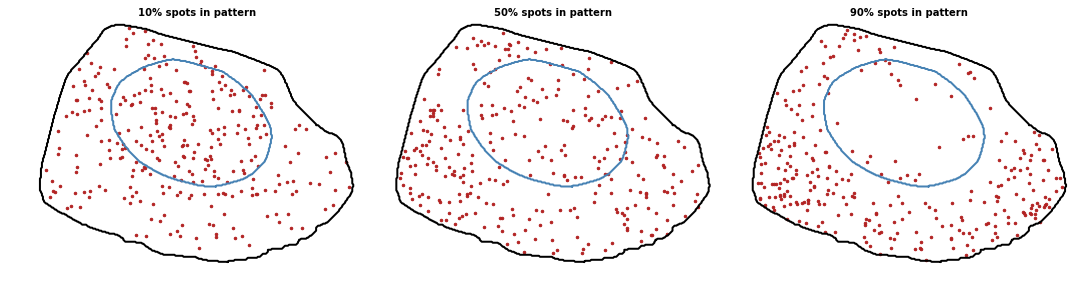

  • Pericellular

pic8

  • Protrusion

pic9

We build a map of probability distribution to bias the localization of generated spots. Maps are built from specific cell templates:

We can simulate ground truth coordinates based on these probability maps:

simfish.build_probability_map(path_template_directory, i_cell=None, index_template=None, map_distribution='random', return_masks=False)

Build a template and its probability map to sample spot coordinates.

Parameters
path_template_directorystr

Path of the templates directory.

i_cellint, optional

Template id to build (between 0 and 317). If None, a random template is built.

index_templatepd.DataFrame, optional

Dataframe with the templates metadata. If None, dataframe is load from ‘path_template_directory’. Columns are:

  • ‘id’ instance id.

  • ‘shape’ shape of the cell image (with the format ‘{z}_{y}_{x}’).

  • ‘protrusion_flag’ presence or not of protrusion in the instance.

map_distributionstr, default=’random’

Probability distribution map to generate among ‘random’, ‘random_out’, ‘random_in’, ‘nuclear_edge’, ‘perinuclear’, ‘cell_edge’, ‘pericellular’ and ‘protrusion’.

return_masksbool, default=False

Return cell and nucleus binary masks.

Returns
probability_mapnp.ndarray, np.float32

Probability map to sample spots coordinates with shape (z, y, x).

cell_masknp.ndarray, bool, optional

Binary mask of the cell surface with shape (z, y, x).

nuc_masknp.ndarray, bool, optional

Binary mask of the nucleus surface with shape (z, y, x).

simfish.simulate_localization_pattern(path_template_directory, n_spots, i_cell=None, index_template=None, pattern='random', proportion_pattern=0.5)

Simulate spot coordinates with a specific localization pattern from a cell template.

Parameters
path_template_directorystr

Path of the templates directory.

n_spotsint

Number of spots to simulate.

i_cellint, optional

Template id to build (between 0 and 317). If None, a random template is built.

index_templatepd.DataFrame, optional

Dataframe with the templates metadata. If None, dataframe is load from ‘path_template_directory’. Columns are:

  • ‘id’ instance id.

  • ‘shape’ shape of the cell image (with the format ‘{z}_{y}_{x}’).

  • ‘protrusion_flag’ presence or not of protrusion in the instance.

patternstr, default=’random’

Spot localization pattern to simulate among ‘random’, ‘foci’, ‘intranuclear’, ‘extranuclear’, ‘nuclear_edge’, ‘perinuclear’, ‘cell_edge’, ‘pericellular’ and ‘protrusion’.

proportion_patternint or float, default=0.5

Proportion of spots to localize with the pattern. Value between 0 and 1 (0 means random pattern and 1 a perfect pattern).

Returns
instance_coorddict

Dictionary with information about the cell:

  • cell_id: Unique id of the cell.

  • bbox: bounding box coordinates with the order (min_y, min_x, max_y, max_x).

  • cell_coord: boundary coordinates of the cell.

  • cell_mask: mask of the cell.

  • nuc_coord: boundary coordinates of the nucleus.

  • nuc_mask: mask of the nucleus.

  • rna_coord: rna spot coordinates.
